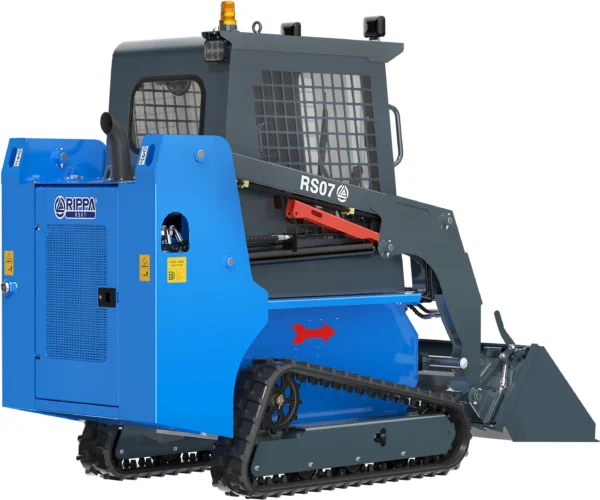

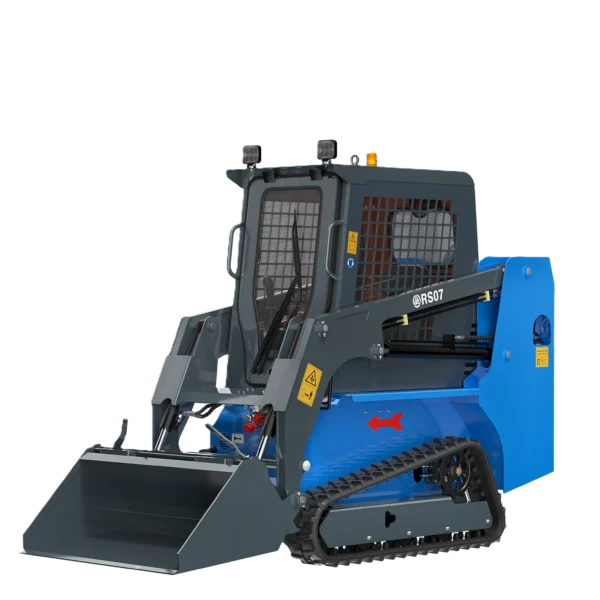

The RS 07 compact loader is the ideal solution for construction projects, agriculture, and landscaping. With its powerful Kubota diesel engine, high load capacity, and compact dimensions, it delivers maximum efficiency in confined spaces.
Whether for material transport, earthmoving, or cleaning – thanks to a wide range of attachments, the RS 07 adapts flexibly to your requirements.
RS07 – Specifications
Basic Performance Data
EU / US
Operating weight
1230 kg / 2712 lb
Bucket capacity
0.16 m³ / 5.65 ft³
Rated load
300 kg / 661 lb
Max. load
670 kg / 1477 lb
Travel speed
0–8 km/h / 0–5.0 mph
Gradeability
30 % / 30 %
Ground pressure
95.87 kPa / 13.91 psi
Max. dumping height
1725 mm / 67.9 in
Max. loading height
2260 mm / 89.0 in
Max. dumping reach
508 mm / 20.0 in
Min. ground clearance
176 mm / 6.93 in
Engine
EU / US
Brand
Kubota / Kubota
Model
D1105 / D1105
Max. horsepower
24.8 PS / 24.5 hp
Max. power
18.2 kW / 24.5 hp
Max. speed
3000 rpm / 3000 rpm
Displacement
1.123 L / 68.5 in³
Cylinders
3 / 3

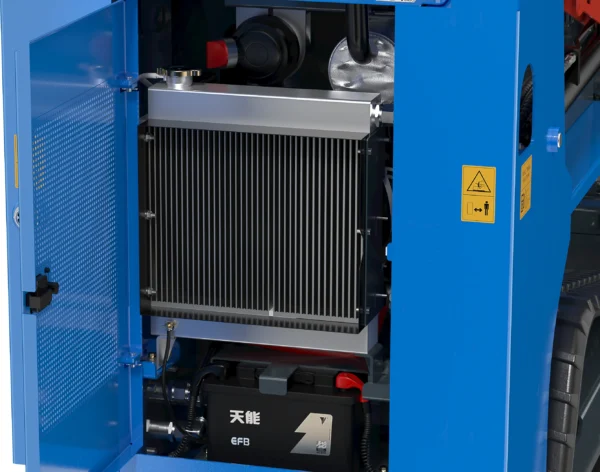

Cooling
Water-cooled / Water-cooled
Engine oil capacity
4 L / 4.23 qt
Fuel type
Diesel / Diesel
Fuel grade
No. 0 / -10 / No. 0 / -10
Theoretical consumption
1.3–1.5 L/h / 0.34–0.40 US gal/h
Dimensions
EU / US
Transport length with bucket
2655 mm / 104.5 in
Transport length without bucket
1985 mm / 78.1 in
Transport width
1000 mm / 39.4 in
Transport height
1810 mm / 71.3 in
Bucket width
1000 mm / 39.4 in
Tank Capacities
EU / US
Fuel tank
32 L / 8.45 US gal
Hydraulic oil tank
32 L / 8.45 US gal
Tires
EU / US
Wheels
570 mm × 160 mm / 22.44 in × 6.30 in
Track
230 mm × 72 mm × 45 links / 9,06 in × 2,83 in × 45 links
